Android context menu :
Context menu in android is a type used to open a android popup menu when a Long Click is made on list-view. A menu pop’s up giving options like share, delete, edit,etc,.
These menu’s you will find in every app mostly where you can make any configuration changes to the particular field, the options available are then visible accordingly.
Generally used with listview to populate further more options which cannot be displayed there on the list.This types of list menu are much flexible in using and also gives a comfort in design purpose too.
Android context menu saves a lot of space and reuses the same code through-out the app also you can customized the items to be displayed in each screen if required.
In this tutorial i will be showing you android context menu example based on the android context menu with five different options.
Inserting values into String [ ] and showing these values in list-view, and by long click on this values you can get a options menu.
[/et_pb_text][et_pb_text admin_label=”Text” background_layout=”light” text_orientation=”left” use_border_color=”off” border_color=”#000000″ border_style=”solid” custom_padding=”15px|15px|15px|15px”]
MainActivity.java :
In this context menu i am adding five options like share, view, update, delete, delete all you may add and customize the list accordingly.
menu.add(0, 0, 0, "Share"); menu.add(0, 1, 1, "View"); menu.add(0, 2, 2, "Update"); menu.add(0, 3, 3, "Delete"); menu.add(0, 3, 3, "Delete All");
Declaring a String array with dummy values as
String[] value = new String[] { "one", "two", "three", "four", "five" };
And passing the above values on to the list adapter and then registering our context menu on the listview as
this.registerForContextMenu(listView);
After a long press on the particular item and selecting the option we can return selected value and process it.
return super.onContextItemSelected(item);
public class MainActivity extends Activity {
ListView listView;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
listView = (ListView) findViewById(R.id.listView);
String[] value = new String[] { "one", "two", "three",
"four", "five" };
ArrayAdapter adapter = new ArrayAdapter(this,
android.R.layout.simple_list_item_1,
android.R.id.text1, value);
// Assign adapter to ListView
listView.setAdapter(adapter);
this.registerForContextMenu(listView);
}
@Override
public void onCreateContextMenu(ContextMenu menu, View v,
ContextMenuInfo menuInfo) {
// TODO Auto-generated method stub
super.onCreateContextMenu(menu, v, menuInfo);
menu.add(0, 0, 0, "Share");
menu.add(0, 1, 1, "View");
menu.add(0, 2, 2, "Update");
menu.add(0, 3, 3, "Delete");
menu.add(0, 3, 3, "Delete All");
}
@Override
public boolean onContextItemSelected(MenuItem item) {
AdapterView.AdapterContextMenuInfo info
= (AdapterView.AdapterContextMenuInfo) item
.getMenuInfo();
int itemPosition = info.position;
Uri uri;
int selected = 0;
switch (item.getItemId()) {
case 0:
Toast.makeText(MainActivity.this,
"Share", Toast.LENGTH_LONG).show();
break;
case 1:
Toast.makeText(MainActivity.this,
"View", Toast.LENGTH_LONG).show();
break;
case 2:
Toast.makeText(MainActivity.this,
"Update", Toast.LENGTH_LONG).show();
break;
case 3:
Toast.makeText(MainActivity.this,
"Delete", Toast.LENGTH_LONG).show();
break;
case 4:
Toast.makeText(MainActivity.this,
"Delete All", Toast.LENGTH_LONG).show();
}
return super.onContextItemSelected(item);
}
[/et_pb_text][et_pb_text admin_label=”Text” background_layout=”light” text_orientation=”left” use_border_color=”off” border_color=”#000000″ border_style=”solid” custom_padding=”15px|15px|15px|15px”]
Adding Listview and text view to the xml file.You can also customize the listview with icons and images based on your android context menu requirement.
activity_main.xml
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/LinearLayout1"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
tools:context="com.androidcoding.abhi.context_menu.MainActivity" >
<TextView
android:id="@+id/textView"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginTop="80dp"
android:layout_gravity="center"
android:text="Context-Menu"
android:layout_marginBottom="10dp"
android:textAppearance="?android:attr/textAppearanceLarge" />
<ListView
android:id="@+id/listView"
android:layout_width="match_parent"
android:layout_height="wrap_content" >
</ListView>
</LinearLayout>
[/et_pb_text][et_pb_text admin_label=”Text” background_layout=”light” text_orientation=”left” use_border_color=”off” border_color=”#000000″ border_style=”solid” custom_padding=”15px|15px|15px|15px”]
AndroidManifest.xml :
There is nothing to be added here in android manifest file this is the basic configuration setup for every app.
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.androidcoding.abhi.context_menu"
android:versionCode="1"
android:versionName="1.0" >
<uses-sdk
android:minSdkVersion="8"
android:targetSdkVersion="21" />
<application
android:allowBackup="true"
android:icon="@drawable/ic_launcher"
android:label="@string/app_name"
android:theme="@style/AppTheme" >
<activity
android:name="com.androidcoding.abhi.context_menu.MainActivity"
android:label="@string/app_name" >
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
</application>
</manifest>
[/et_pb_text][et_pb_text admin_label=”Text” background_layout=”light” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]

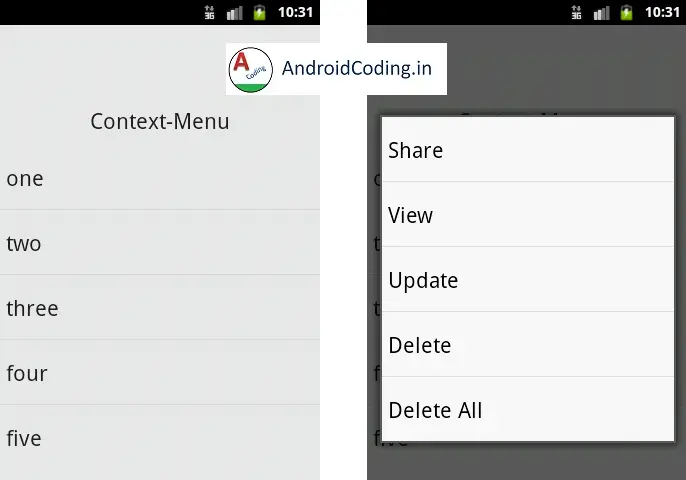

Output:
This screen below depicts the usage of android context menu implementation.
If you have any query’s in this tutorial on android context menu let me know through comments below.
Like and share this tutorial if you like to get more interesting content from us.
