Android Bottom Navigation and Navigation Drawer || Part 1

Android navigation drawer bottom navigation :

This tutorial is being presented as from request from user i am going to explain the usage of both android navigation drawer and bottom navigation in a single activity.

Generally we use android navigation drawer and bottom navigation separately but now we will try to join them.

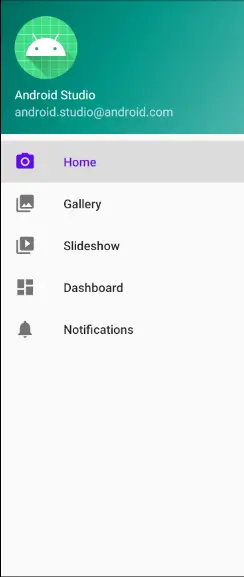

Android navigation drawer

android navigation drawer                            android navigation drawer















[/et_pb_text][et_pb_text admin_label=”Text” background_layout=”light” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]

Project Structure :

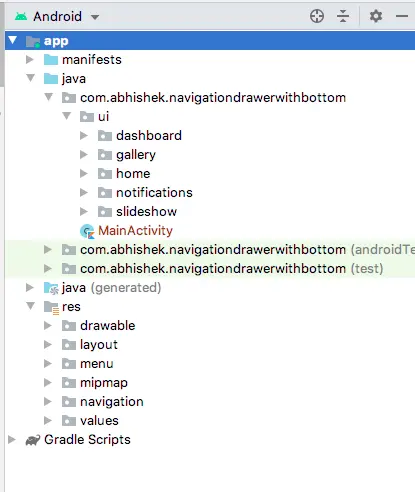

Project structure depicting the flow of the files used in the project for android navigation drawer bottom navigation

android navigation drawer project structure



mobile_navigation.xml

Add navigation’s in navigation folder so that we can easily navigate in between fragments it’s again a optional process.

If you are not familiar with this declarations you may follow the traditional way of navigation using fragment managers.

<?xml version="1.0" encoding="utf-8"?>
<navigation xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/mobile_navigation"
    app:startDestination="@+id/nav_home">

    <fragment
        android:id="@+id/nav_home"
        android:name="com.abhishek.navigationdrawerwithbottom.ui.home.HomeFragment"
        android:label="@string/menu_home"
        tools:layout="@layout/fragment_home">

        <action
            android:id="@+id/action_HomeFragment_to_HomeSecondFragment"
            app:destination="@id/nav_home" />
    </fragment>

    <fragment
        android:id="@+id/nav_gallery"
        android:name="com.abhishek.navigationdrawerwithbottom.ui.gallery.GalleryFragment"
        android:label="@string/menu_gallery"
        tools:layout="@layout/fragment_gallery" />

    <fragment
        android:id="@+id/nav_slideshow"
        android:name="com.abhishek.navigationdrawerwithbottom.ui.slideshow.SlideshowFragment"
        android:label="@string/menu_slideshow"
        tools:layout="@layout/fragment_slideshow" />

    <fragment
        android:id="@+id/nav_dashboard"
        android:name="com.abhishek.navigationdrawerwithbottom.ui.dashboard.DashboardFragment"
        android:label="@string/menu_dashboard"
        tools:layout="@layout/fragment_dashboard" />

    <fragment
        android:id="@+id/nav_notifications"
        android:name="com.abhishek.navigationdrawerwithbottom.ui.notifications.NotificationsFragment"
        android:label="@string/menu_notifications"
        tools:layout="@layout/fragment_notifications" />
</navigation>



content_main.xml

Add a host fragment and Bottom Navigation View to the screen and adjust them according to your requirements so as to make a clean code.

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    app:layout_behavior="@string/appbar_scrolling_view_behavior"
    tools:showIn="@layout/app_bar_main">

    <fragment
        android:id="@+id/nav_host_fragment"
        android:name="androidx.navigation.fragment.NavHostFragment"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        app:defaultNavHost="true"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        app:navGraph="@navigation/mobile_navigation" />

    <com.google.android.material.bottomnavigation.BottomNavigationView
        android:id="@+id/bottom_navigation_view"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="?android:attr/windowBackground"
        app:labelVisibilityMode="labeled"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:menu="@menu/activity_main_drawer" />


</androidx.constraintlayout.widget.ConstraintLayout>



app_bar_main.xml

Add toolbar to app_bar_main layout and also include content_main in the app bar

<?xml version="1.0" encoding="utf-8"?>
<androidx.coordinatorlayout.widget.CoordinatorLayout
xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <com.google.android.material.appbar.AppBarLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:theme="@style/AppTheme.AppBarOverlay">

        <androidx.appcompat.widget.Toolbar
            android:id="@+id/toolbar"
            android:layout_width="match_parent"
            android:layout_height="?attr/actionBarSize"
            android:background="?attr/colorPrimary"
            app:popupTheme="@style/AppTheme.PopupOverlay" />

    </com.google.android.material.appbar.AppBarLayout>

    <include layout="@layout/content_main" />

</androidx.coordinatorlayout.widget.CoordinatorLayout>



nav_header_main.xml

Here in this block we will find the header details like user name, user image and other user related details after the login.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="@dimen/nav_header_height"
    android:background="@drawable/side_nav_bar"
    android:gravity="bottom"
    android:orientation="vertical"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:theme="@style/ThemeOverlay.AppCompat.Dark">

    <ImageView
        android:id="@+id/imageView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:contentDescription="@string/nav_header_desc"
        android:paddingTop="@dimen/nav_header_vertical_spacing"
        app:srcCompat="@mipmap/ic_launcher_round" />

    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:paddingTop="@dimen/nav_header_vertical_spacing"
        android:text="@string/nav_header_title"
        android:textAppearance="@style/TextAppearance.AppCompat.Body1" />

    <TextView
        android:id="@+id/textView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/nav_header_subtitle" />

</LinearLayout>



activity_main_drawer.xml

Add items these will be show in both the android navigation drawer and bottom navigation’s.

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    tools:showIn="navigation_view">

    <group android:checkableBehavior="single">
        <item
            android:id="@+id/nav_home"
            android:icon="@drawable/ic_menu_camera"
            android:title="@string/menu_home" />
        <item
            android:id="@+id/nav_gallery"
            android:icon="@drawable/ic_menu_gallery"
            android:title="@string/menu_gallery" />
        <item
            android:id="@+id/nav_slideshow"
            android:icon="@drawable/ic_menu_slideshow"
            android:title="@string/menu_slideshow" />

        <item
            android:id="@+id/nav_dashboard"
            android:icon="@drawable/ic_dashboard_black_24dp"
            android:title="@string/menu_dashboard" />

        <item
            android:id="@+id/nav_notifications"
            android:icon="@drawable/ic_notifications_black_24dp"
            android:title="@string/menu_notifications" />
    </group>
</menu>



activity_main.xml

In the drawer layout specify the main layout through include and also navigation drawer

<?xml version="1.0" encoding="utf-8"?>
<androidx.drawerlayout.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/drawer_layout"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:fitsSystemWindows="true"
    tools:openDrawer="start">

    <include
        layout="@layout/app_bar_main"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />

    <com.google.android.material.navigation.NavigationView
        android:id="@+id/nav_view"
        android:layout_width="wrap_content"
        android:layout_height="match_parent"
        android:layout_gravity="start"
        android:fitsSystemWindows="true"
        app:headerLayout="@layout/nav_header_main"
        app:menu="@menu/activity_main_drawer" />

</androidx.drawerlayout.widget.DrawerLayout>





Now we will implement fragments

fragment_home.xml

We are considering a single textview to show the fragment name so that user can know in which fragment is loaded currently.

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".ui.home.HomeFragment">

    <TextView
        android:id="@+id/text_home"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginStart="8dp"
        android:layout_marginTop="8dp"
        android:layout_marginEnd="8dp"
        android:textAlignment="center"
        android:textSize="20sp"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />
</androidx.constraintlayout.widget.ConstraintLayout>



HomeViewModel.class

Add a view model with mutable live data.This is a part of MVVM architectural way if you want to skip may directly set the value of textview in the activity itself.

package com.abhishek.navigationdrawerwithbottom.ui.home

import androidx.lifecycle.LiveData
import androidx.lifecycle.MutableLiveData
import androidx.lifecycle.ViewModel

class HomeViewModel : ViewModel() {

    private val _text = MutableLiveData<String>().apply {
        value = "This is home Fragment"
    }
    val text: LiveData<String> = _text
}



HomeFragment.class

Initialize a HomeViewModel  with lateinit observe the data from view model and set it to textview.

package com.abhishek.navigationdrawerwithbottom.ui.home

import android.os.Bundle
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import android.widget.TextView
import androidx.fragment.app.Fragment
import androidx.lifecycle.Observer
import androidx.lifecycle.ViewModelProviders
import com.abhishek.navigationdrawerwithbottom.R

class HomeFragment : Fragment() {

    private lateinit var homeViewModel: HomeViewModel

    override fun onCreateView(
            inflater: LayoutInflater,
            container: ViewGroup?,
            savedInstanceState: Bundle?
    ): View? {
        homeViewModel =
                ViewModelProviders.of(this).get(HomeViewModel::class.java)
        val root = inflater.inflate(R.layout.fragment_home, container, false)
        val textView: TextView = root.findViewById(R.id.text_home)
        homeViewModel.text.observe(viewLifecycleOwner, Observer {
            textView.text = it
        })
        return root
    }
}



MainActivity.java

Enable drawer layout and bottom navigation’s in the main activity and configure them with the controller.



Drawer layout

val drawerLayout: DrawerLayout = findViewById(R.id.drawer_layout)



Navigation View

val navView: NavigationView = findViewById(R.id.nav_view)



BottomNavigationView

val navBottomView : BottomNavigationView = findViewById(R.id.bottom_navigation_view)



Create a controller

val navController = findNavController(R.id.nav_host_fragment)



add fragments to configurations to navigate

appBarConfiguration = AppBarConfiguration(setOf(
        R.id.nav_home, R.id.nav_gallery, R.id.nav_slideshow,R.id.nav_dashboard,R.id.nav_notifications), drawerLayout)
setupActionBarWithNavController(navController, appBarConfiguration)



finally setup both the navigation’s

navView.setupWithNavController(navController)

navBottomView.setupWithNavController(navController)



import android.os.Bundle
import android.view.Menu
import com.google.android.material.floatingactionbutton.FloatingActionButton
import com.google.android.material.snackbar.Snackbar
import com.google.android.material.navigation.NavigationView
import androidx.navigation.findNavController
import androidx.navigation.ui.AppBarConfiguration
import androidx.navigation.ui.navigateUp
import androidx.navigation.ui.setupActionBarWithNavController
import androidx.navigation.ui.setupWithNavController
import androidx.drawerlayout.widget.DrawerLayout
import androidx.appcompat.app.AppCompatActivity
import androidx.appcompat.widget.Toolbar
import com.google.android.material.bottomnavigation.BottomNavigationView

class MainActivity : AppCompatActivity() {

    private lateinit var appBarConfiguration: AppBarConfiguration

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)
        val toolbar: Toolbar = findViewById(R.id.toolbar)
        setSupportActionBar(toolbar)

        val drawerLayout: DrawerLayout = findViewById(R.id.drawer_layout)
        val navView: NavigationView = findViewById(R.id.nav_view)
        val navBottomView : BottomNavigationView = findViewById(R.id.bottom_navigation_view)
        val navController = findNavController(R.id.nav_host_fragment)
        // Passing each menu ID as a set of Ids because each
        // menu should be considered as top level destinations.
        appBarConfiguration = AppBarConfiguration(setOf(
                R.id.nav_home, R.id.nav_gallery, R.id.nav_slideshow,R.id.nav_dashboard,R.id.nav_notifications), drawerLayout)
        setupActionBarWithNavController(navController, appBarConfiguration)
        navView.setupWithNavController(navController)
        navBottomView.setupWithNavController(navController)
    }

    override fun onCreateOptionsMenu(menu: Menu): Boolean {
        // Inflate the menu; this adds items to the action bar if it is present.
        menuInflater.inflate(R.menu.main, menu)
        return true
    }

    override fun onSupportNavigateUp(): Boolean {
        val navController = findNavController(R.id.nav_host_fragment)
        return navController.navigateUp(appBarConfiguration) || super.onSupportNavigateUp()
    }


}



For second part of the tutorial android navigation drawer bottom navigation with remaining fragments code may visit

https://androidcoding.in/2020/05/21/android-bottom-navigation-and-navigation-drawer-part-2/

Show Buttons
Hide Buttons
Read previous post:
Android Work manager tutorial || Background Services || Periodic Work Request

Android work manager : In continuation to the previous tutorial we are proceeding with android work manager - periodic work...

Close
